Combination summary for cgn08

Content

Original velocities
Short baseline analysis
Weights
Translations
Outlier rejections
Cross validations
Final residual field
Station residuals

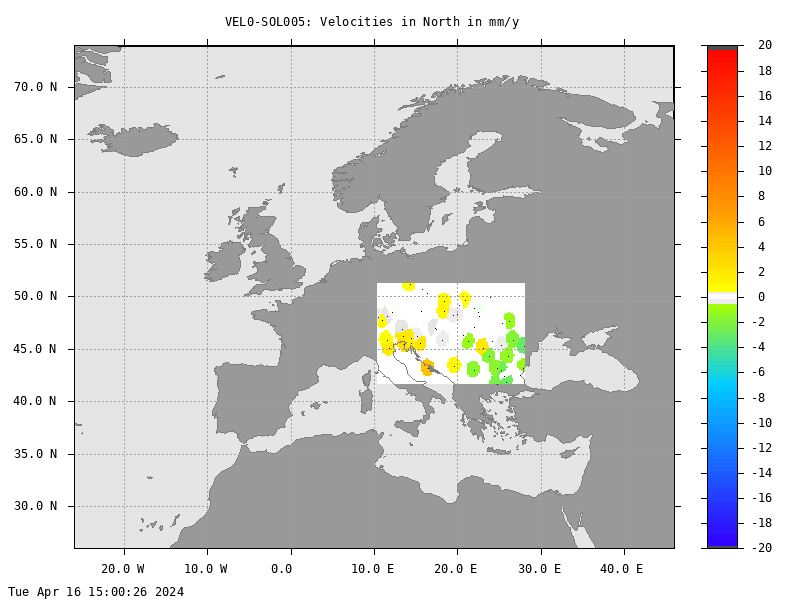

Original velocitiess (North, East and Up)

VEL0-SOL005-GRD1V1100.gif VEL0-SOL005-GRD2V1100.gif VEL0-SOL005-GRD3V1100.gif

Short baseline analysis in mm/y

(Sortable table)
Site location: LAT (link to swisstopo Mercator Map) / LON (link to Google Maps)
 STAT1- STAT2  L(M) Maps LAT/LON  dVN  dVE  dVU |dVH| |dVV|

Weigths

Weight in N: 1E+00
Weight in E: 1E+00
Weight in U: 1E+00

Translations in mm/y

Translation in N:  0.00
Translation in E:  0.00
Translation in U:  0.00

Outlier rejections

DEL


MAN


OUT


RES

 *** RES: ROZH  41.7/  24.7 from cgn08 deleted (VNEU =  -2.41/  0.09/  4.29 mm/y, Median =  -2.41/  0.09/  0.39 mm/y)
 *** RES: TIS3  45.1/  23.1 from cgn08 deleted (VNEU =   1.92/ -2.05/  0.80 mm/y, Median =  -1.31/ -0.91/  0.49 mm/y)

Cross validations in mm/y

(Sortable table)
 SOL1 SOL2 NUM MEAN_N SDEV_N MEAN_E SDEV_E MEAN_U SDEV_U
 cgn08 alp08 9  -0.21  0.46  0.31  0.89  -0.38  0.76
 cgn08 alps17 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 basc08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 cat08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 cgn08 46  0.00  0.00  0.00  0.00  0.00  0.00
 cgn08 cgn14 44  0.11  0.34  0.05  0.33  -0.03  0.83
 cgn08 ch08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 ch08l 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 ch16 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 eifel 6  0.54  0.32  0.26  0.44  -0.02  0.74
 cgn08 epn14 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 epnd14 10  -0.33  0.87  -0.03  0.78  -0.16  1.08
 cgn08 epndmy 2  0.04  0.06  -0.17  0.44  -0.15  0.57
 cgn08 esp08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 gr08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 gref08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 gren19 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 gsrm14 12  0.35  0.53  0.39  0.89  NaN  NaN
 cgn08 gurn08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 gurn08d 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 gut14x 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 hepos 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 igs08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 ingv22 15  -0.06  0.43  0.08  0.28  -0.44  0.88
 cgn08 it08 2  0.33  0.13  -0.23  0.41  -0.69  0.38
 cgn08 itrf14 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 itrf20 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 mont19 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 nkg17 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 noqu08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 renag20 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 rgp08 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 sa22 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 svn14 1  -0.32  NaN  0.33  NaN  0.49  NaN
 cgn08 turk14 0  NaN  NaN  NaN  NaN  NaN  NaN
 cgn08 walp08 0  NaN  NaN  NaN  NaN  NaN  NaN
 MEAN      0.05  0.39  0.11  0.56  -0.17  0.75
 SDEV      0.31  0.25  0.22  0.25  0.35  0.22

Final residual field (horizontal and vertical)

VELF-SOL005_vel_hvl11.gif VELF-SOL005_vel_vvl11.gif

Station residuals in mm/y

(Sortable table)
Site location: LAT (link to swisstopo Mercator Map) / LON (link to Google Maps)
 STATION  Maps LAT/LON   VN   VE   VU   |VH|   |VV|  NUM
 [0256] [+011.590/+48.141]  0.15  -0.14  0.17  0.21  0.17  3
 [0266] [+012.161/+48.540]  0.25  0.01  -0.13  0.25  0.13  3
 [0273] [+010.494/+48.042]  0.06  -0.04  0.22  0.07  0.22  3
 [ASIA] [+011.525/+45.866]  0.00  0.05  -0.38  0.05  0.38  7
 [AT01] [+015.598/+48.655]  0.09  -0.00  -0.04  0.09  0.04  2
 [BOZI] [+013.485/+46.274]  0.08  0.02  -0.03  0.09  0.03  3
 [BRAI] [+027.973/+45.268]  -0.04  0.08  -0.11  0.08  0.11  2
 [BRSK] [+015.570/+45.579]  0.04  0.13  0.00  0.13  0.00  3
 [BUCA] [+026.051/+44.350]  0.55  -0.22  0.91  0.59  0.91  3
 [BURG] [+027.478/+42.496]  0.02  0.08  -0.26  0.08  0.26  2
 [CRAI] [+023.765/+44.338]  -0.26  0.35  -0.46  0.44  0.46  4
 [CSAN] [+020.671/+46.320]  0.09  0.01  -0.02  0.09  0.02  2
 [CSAR] [+018.217/+45.884]  0.14  0.07  -0.20  0.16  0.20  2
 [DISZ] [+017.491/+46.884]  0.09  -0.02  -0.04  0.09  0.04  3
 [GABR] [+025.277/+42.963]  0.08  0.04  0.26  0.09  0.26  2
 [GRMS] [+013.373/+46.917]  0.06  -0.05  0.76  0.08  0.76  2
 [GRYB] [+020.947/+49.629]  0.10  0.01  -0.04  0.10  0.04  2
 [HARM] [+025.846/+41.884]  -0.66  0.43  0.55  0.79  0.55  4
 [HOHE] [+011.018/+47.801]  -0.02  -0.08  -0.59  0.08  0.59  3
 [HVAR] [+016.449/+43.177]  0.14  0.03  0.05  0.14  0.05  2
 [KAME] [+021.994/+48.935]  0.21  0.36  -0.31  0.41  0.31  5
 [KIRS] [+014.286/+51.214]  0.02  -0.03  -0.07  0.03  0.07  2
 [LESK] [+021.948/+42.998]  0.12  0.15  -0.60  0.19  0.60  5
 [LJUB] [+014.495/+46.046]  -0.14  0.13  0.10  0.19  0.10  5
 [LOMS] [+020.213/+49.195]  0.04  0.23  0.42  0.23  0.42  4
 [LOVE] [+024.708/+43.137]  -0.19  0.15  0.10  0.24  0.10  4
 [LYSA] [+018.447/+49.546]  0.11  0.01  -0.03  0.11  0.03  2
 [LYSH] [+018.448/+49.546]  0.43  0.11  0.36  0.44  0.36  4
 [MALJ] [+013.643/+45.504]  0.02  0.01  -0.10  0.03  0.10  2
 [MRZL] [+015.110/+46.189]  -0.59  0.55  -0.39  0.81  0.39  2
 [ORAD] [+021.942/+47.059]  0.16  -0.12  0.17  0.21  0.17  2
 [PART] [+018.341/+48.630]  0.18  -0.28  -0.34  0.33  0.34  2
 [POL1] [+016.322/+50.350]  0.13  -0.20  -0.83  0.24  0.83  5
 [PRIJ] [+019.642/+43.386]  0.11  0.08  -1.50  0.13  1.50  4
 [RISO] [+020.005/+48.374]  0.37  0.07  -0.16  0.38  0.16  5
 [ROVI] [+011.783/+45.087]  0.04  -0.37  0.00  0.38  0.00  8
 [SIBI] [+024.146/+45.782]  0.17  -0.15  1.71  0.23  1.71  2
 [SKPL] [+020.231/+49.188]  -0.04  0.12  0.27  0.12  0.27  2
 [SNEZ] [+014.448/+45.589]  -0.30  0.71  -0.36  0.77  0.36  3
 [STAR] [+025.628/+42.413]  -0.46  -0.17  -0.94  0.49  0.94  3
 [SUCE] [+026.237/+47.636]  -0.60  -0.59  0.26  0.84  0.26  4
 [SUME] [+017.292/+46.964]  0.30  0.20  0.06  0.36  0.06  7
 [TARP] [+022.549/+48.130]  0.09  0.01  -0.02  0.10  0.02  2
 [TIMI] [+021.230/+45.745]  0.05  -0.01  0.28  0.05  0.28  2
 [UZHD] [+022.453/+48.563]  0.11  0.01  -0.03  0.11  0.03  2
 [VAT1] [+025.348/+47.457]  0.08  0.06  0.00  0.10  0.00  2
 STATION  Maps LAT/LON   VN   VE   VU   |VH|   |VV|  NUM
 MIN    -0.66  -0.59  -1.50  0.03  0.00
 MAX    0.55  0.71  1.71  0.84  1.71
 MEDI    0.08  0.02  -0.03  0.15  0.21
 MEAN    0.03  0.04  -0.03  0.24  0.32
 SDEV    0.24  0.22  0.49  0.22  0.37
