Combination summary for gref08

Content

Original velocities
Short baseline analysis
Weights
Translations
Outlier rejections
Cross validations
Final residual field
Station residuals

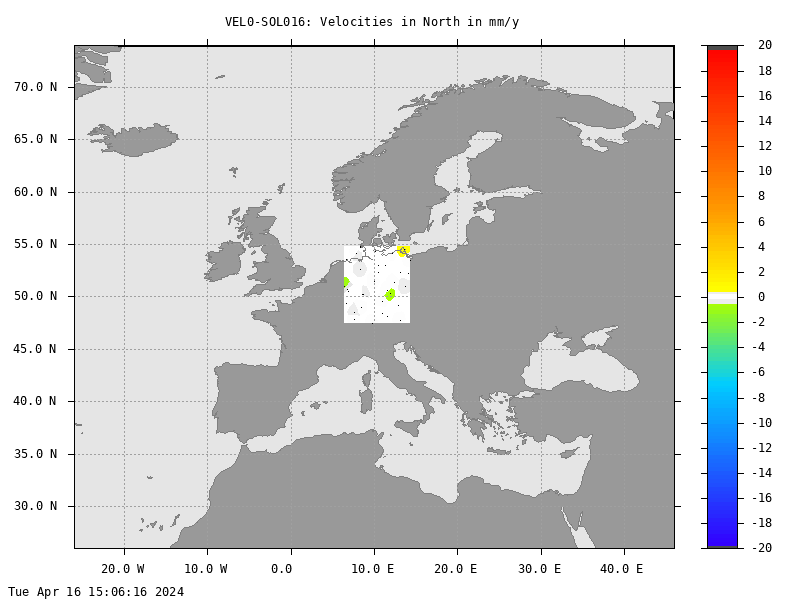

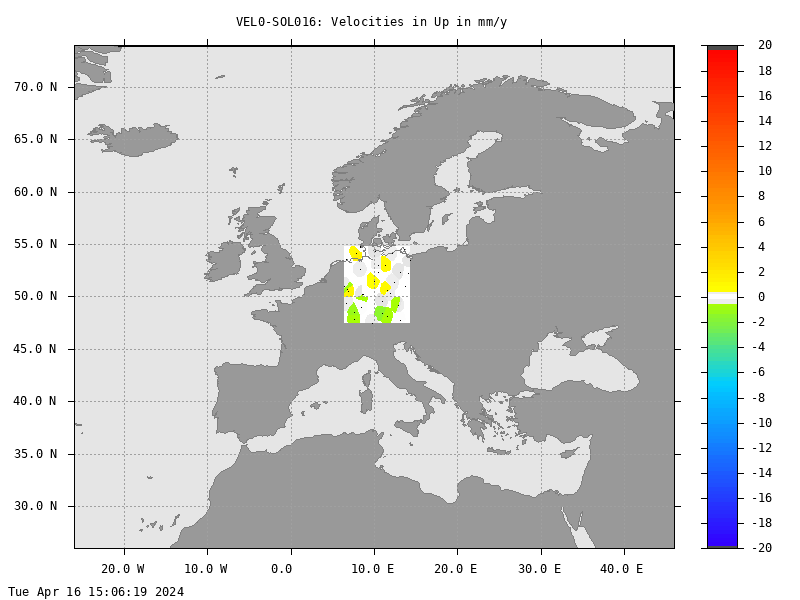

Original velocitiess (North, East and Up)

VEL0-SOL016-GRD1V1100.gif VEL0-SOL016-GRD2V1100.gif VEL0-SOL016-GRD3V1100.gif

Short baseline analysis in mm/y

(Sortable table)
Site location: LAT (link to swisstopo Mercator Map) / LON (link to Google Maps)
 STAT1- STAT2  L(M) Maps LAT/LON  dVN  dVE  dVU |dVH| |dVV|

Weigths

Weight in N: 1E+00
Weight in E: 1E+00
Weight in U: 1E+00

Translations in mm/y

Translation in N:  0.00
Translation in E:  0.00
Translation in U: -0.32

Outlier rejections

DEL


MAN


OUT


RES


Cross validations in mm/y

(Sortable table)
 SOL1 SOL2 NUM MEAN_N SDEV_N MEAN_E SDEV_E MEAN_U SDEV_U
 gref08 alp08 4  -0.45  0.31  -0.26  0.31  -1.05  0.32
 gref08 alps17 14  -0.06  0.22  0.22  0.26  0.13  0.44
 gref08 basc08 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 cat08 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 cgn08 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 cgn14 17  0.03  0.31  0.22  0.19  0.35  0.95
 gref08 ch08 14  -0.05  0.23  0.00  0.29  -0.09  0.72
 gref08 ch08l 1  NaN  NaN  NaN  NaN  -0.80  NaN
 gref08 ch16 13  -0.09  0.28  0.06  0.27  0.30  0.65
 gref08 eifel 37  0.00  0.27  0.14  0.20  0.07  0.78
 gref08 epn14 17  0.06  0.27  0.12  0.21  0.13  0.57
 gref08 epnd14 35  0.08  0.22  0.12  0.23  -0.20  0.75
 gref08 epndmy 19  0.02  0.27  0.19  0.22  0.06  0.61
 gref08 esp08 1  0.49  NaN  0.19  NaN  0.02  NaN
 gref08 gr08 2  0.12  0.27  -0.25  0.32  -0.24  0.14
 gref08 gref08 38  0.00  0.00  0.00  0.00  0.00  0.00
 gref08 gren19 26  0.03  0.32  0.10  0.23  -0.10  0.76
 gref08 gsrm14 24  -0.02  0.42  0.18  0.26  NaN  NaN
 gref08 gurn08 5  -0.07  0.32  -0.22  0.37  NaN  NaN
 gref08 gurn08d 4  0.03  0.27  -0.18  0.43  -0.56  0.81
 gref08 gut14x 7  0.01  0.23  0.27  0.21  0.25  0.90
 gref08 hepos 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 igs08 4  -0.04  0.10  0.37  0.20  0.98  0.56
 gref08 ingv22 38  -0.03  0.32  0.05  0.23  -0.18  0.79
 gref08 it08 1  -0.21  NaN  0.14  NaN  -1.13  NaN
 gref08 itrf14 6  0.06  0.61  0.24  0.16  0.72  0.68
 gref08 itrf20 24  0.03  0.28  -0.00  0.18  0.08  0.59
 gref08 mont19 23  0.14  0.25  0.21  0.30  0.10  0.71
 gref08 nkg17 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 noqu08 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 renag20 12  0.11  0.34  -0.04  0.20  0.04  0.58
 gref08 rgp08 7  0.27  0.34  0.02  0.24  0.41  0.70
 gref08 sa22 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 svn14 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 turk14 0  NaN  NaN  NaN  NaN  NaN  NaN
 gref08 walp08 0  NaN  NaN  NaN  NaN  NaN  NaN
 MEAN      0.02  0.29  0.08  0.25  -0.03  0.65
 SDEV      0.17  0.09  0.17  0.07  0.50  0.19

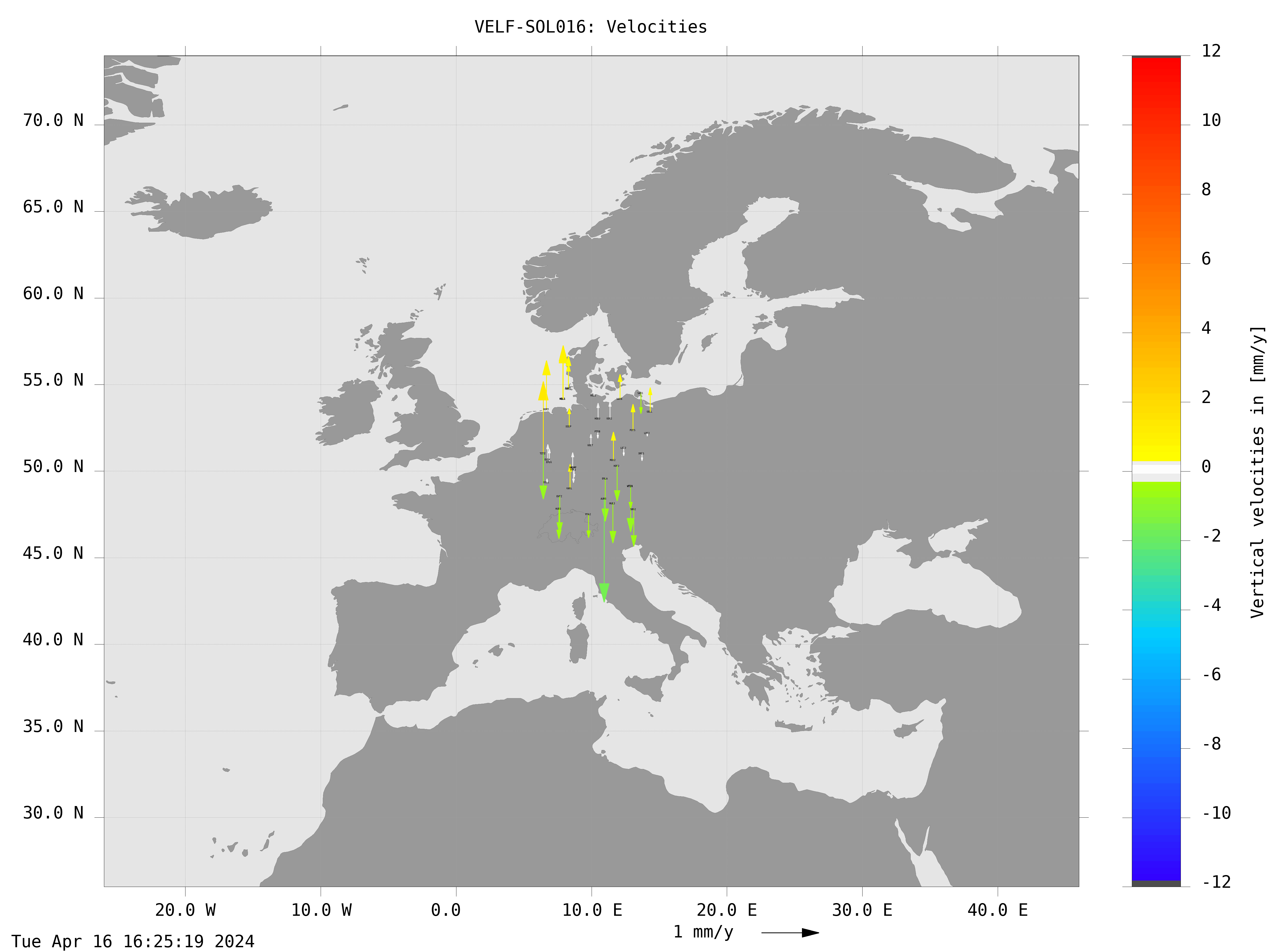

Final residual field (horizontal and vertical)

VELF-SOL016_vel_hvl11.gif VELF-SOL016_vel_vvl11.gif

Station residuals in mm/y

(Sortable table)
Site location: LAT (link to swisstopo Mercator Map) / LON (link to Google Maps)
 STATION  Maps LAT/LON   VN   VE   VU   |VH|   |VV|  NUM
 [AUBG] [+010.921/+48.421]  -0.16  0.03  -1.79  0.17  1.79  6
 [BADH] [+008.610/+50.228]  -0.01  0.05  0.25  0.05  0.25  15
 [BORJ] [+006.666/+53.579]  0.30  0.00  0.84  0.30  0.84  13
 [DIEP] [+008.342/+52.588]  0.09  0.06  0.31  0.11  0.31  8
 [DILL] [+006.700/+49.372]  0.15  -0.20  0.03  0.25  0.03  12
 [DRES] [+013.730/+51.030]  -0.27  0.26  -0.12  0.38  0.12  11
 [EFBG] [+006.882/+50.525]  0.11  0.08  0.23  0.14  0.23  8
 [ENTZ] [+007.640/+48.549]  -0.17  0.11  -0.64  0.20  0.64  18
 [ERLA] [+011.005/+49.586]  -0.04  -0.05  -0.74  0.06  0.74  7
 [EUSK] [+006.764/+50.674]  0.12  0.06  0.26  0.13  0.26  13
 [FFMJ] [+008.665/+50.091]  0.04  -0.11  -0.22  0.11  0.22  8
 [GELL] [+014.322/+53.450]  0.17  0.28  0.41  0.32  0.41  9
 [GOET] [+009.951/+51.500]  0.06  0.10  0.19  0.12  0.19  7
 [GOR2] [+011.350/+53.050]  0.18  0.19  0.29  0.26  0.29  7
 [HEL2] [+007.877/+54.186]  0.05  0.10  0.87  0.11  0.87  5
 [HELG] [+007.893/+54.174]  0.17  0.34  0.93  0.38  0.93  15
 [HOBU] [+010.476/+53.051]  -0.01  0.26  0.27  0.26  0.27  12
 [HOE2] [+008.293/+54.759]  0.23  0.21  0.43  0.31  0.43  7
 [HOFJ] [+011.876/+50.313]  -0.20  0.40  -0.60  0.45  0.60  9
 [HOL2] [+010.157/+54.373]  0.24  0.08  0.17  0.26  0.17  6
 [HUEG] [+007.596/+47.834]  -0.12  0.15  -0.51  0.19  0.51  11
 [KARL] [+008.411/+49.011]  0.14  -0.45  0.40  0.47  0.40  18
 [KLOP] [+008.730/+50.220]  -0.27  -0.09  -0.16  0.29  0.16  14
 [LDB2] [+014.121/+52.209]  0.10  0.13  -0.05  0.16  0.05  10
 [LEIJ] [+012.374/+51.354]  0.01  0.23  -0.13  0.23  0.13  7
 [MOX2] [+011.616/+50.642]  -0.08  -0.03  0.49  0.08  0.49  5
 [MUEJ] [+011.568/+48.149]  -0.17  0.21  -0.68  0.27  0.68  7
 [PFA2] [+009.785/+47.515]  -0.17  -0.06  -0.40  0.18  0.40  14
 [POTS] [+013.066/+52.379]  0.06  0.26  0.44  0.27  0.44  19
 [PTBB] [+010.460/+52.296]  0.00  0.16  -0.11  0.16  0.11  13
 [RANT] [+008.291/+54.811]  0.13  0.04  0.55  0.14  0.55  7
 [SASS] [+013.643/+54.514]  0.78  0.24  -0.35  0.81  0.35  12
 [SBG2] [+013.110/+47.803]  -0.33  0.20  -0.64  0.38  0.64  15
 [TIT2] [+006.432/+51.035]  -0.06  -0.11  1.25  0.13  1.25  5
 [TITZ] [+006.432/+51.035]  -0.51  0.02  -0.79  0.51  0.79  7
 [WARN] [+012.101/+54.170]  0.24  0.02  0.43  0.24  0.43  9
 [WT21] [+012.876/+49.145]  0.05  0.32  -0.78  0.32  0.78  6
 [WTZR] [+012.879/+49.144]  -0.07  0.15  -0.39  0.16  0.39  18
 STATION  Maps LAT/LON   VN   VE   VU   |VH|   |VV|  NUM
 MIN    -0.51  -0.45  -1.79  0.05  0.03
 MAX    0.78  0.40  1.25  0.81  1.79
 MEDI    0.04  0.10  0.10  0.24  0.41
 MEAN    0.02  0.10  -0.00  0.25  0.48
 SDEV    0.22  0.17  0.60  0.15  0.35
