swipos statistics (Jan. 1 - Dec. 8, 2020) |
||
|---|---|---|
| Back to PNAC monitoring | ||
 |
||
Content |
Positions animated (by month)
|
|

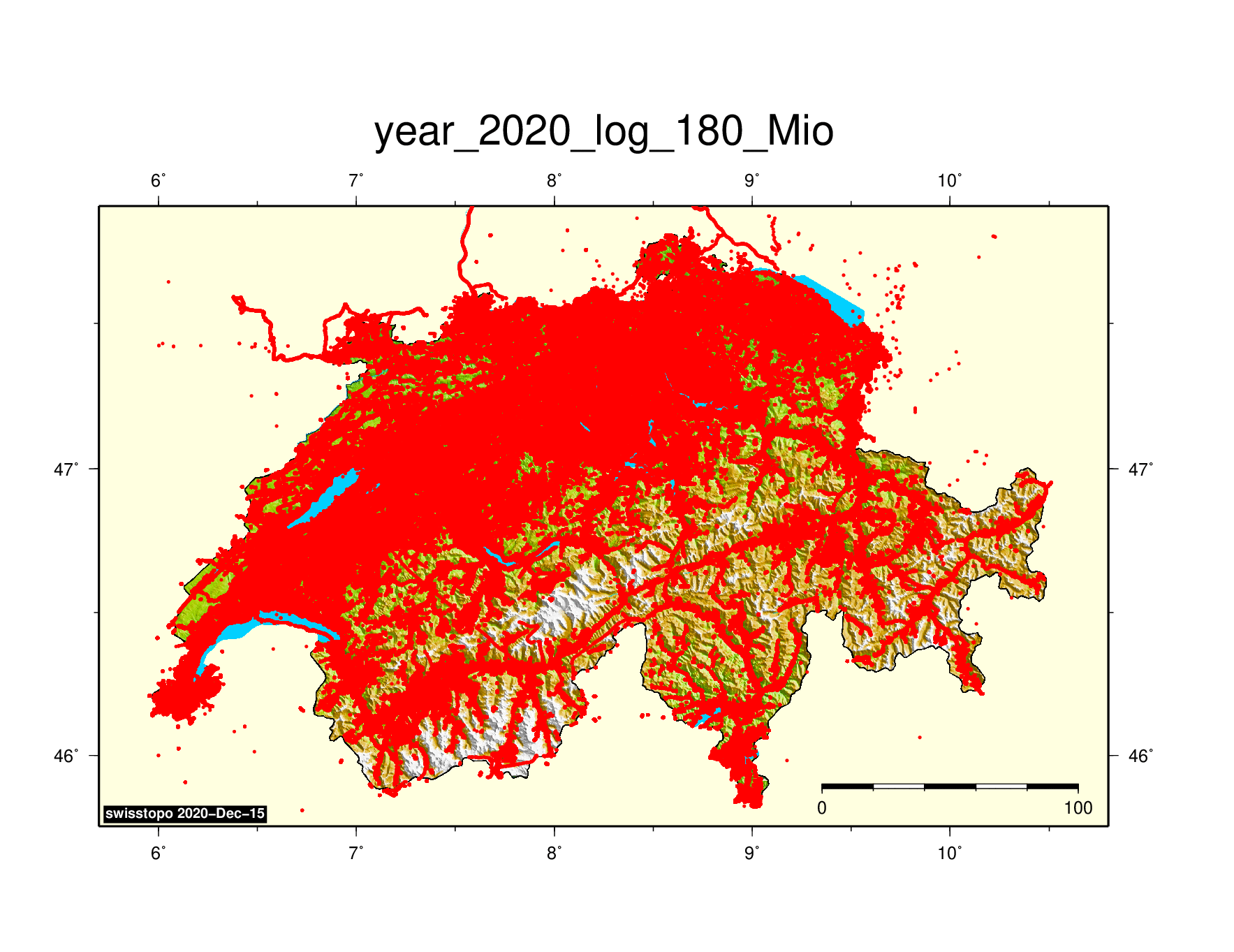

Positions (all year)180'000'000 positions, in total.
|
|
|

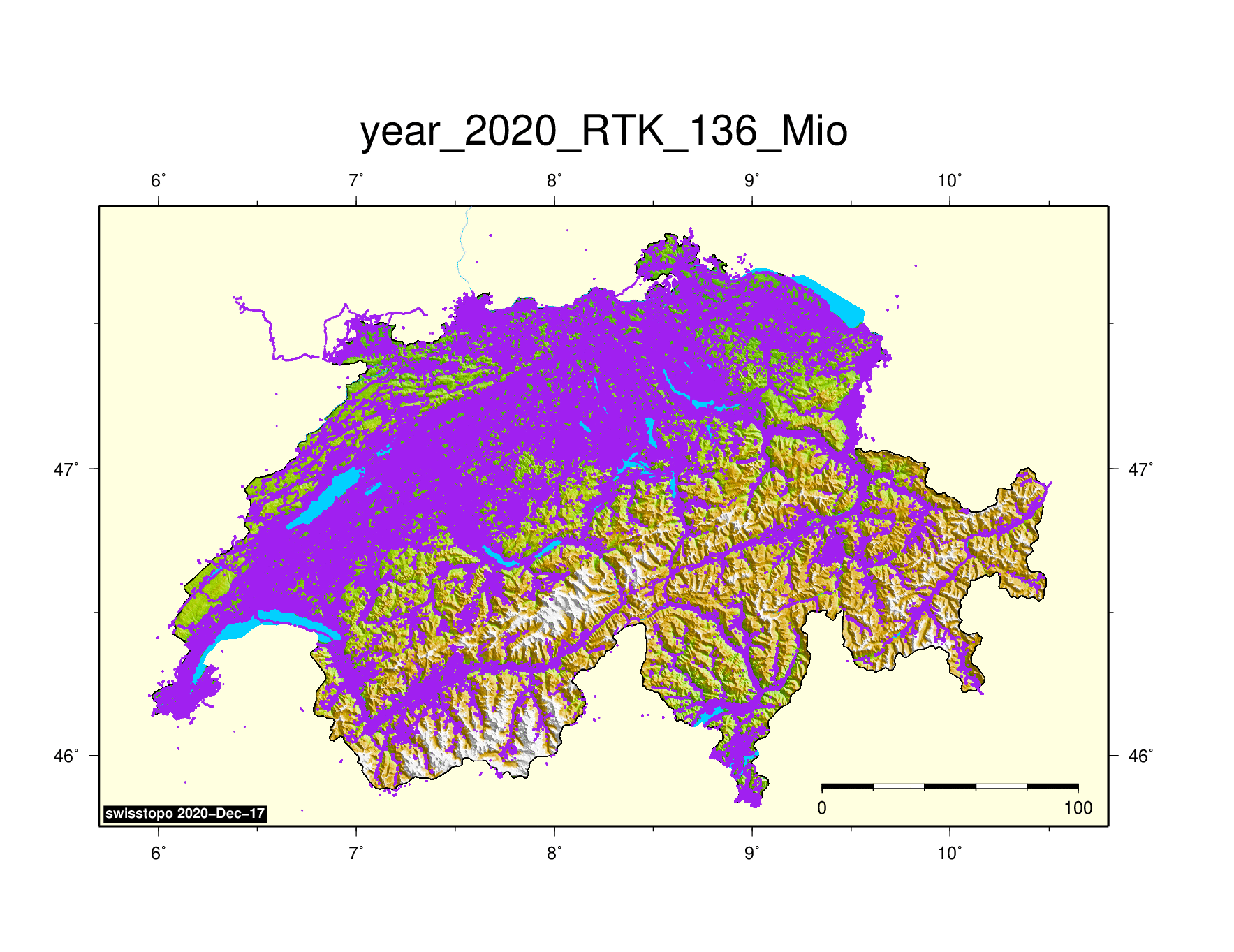

Positions RTK-fixed (all year)136'000'000 positions RTK-fixed.
|
|
|

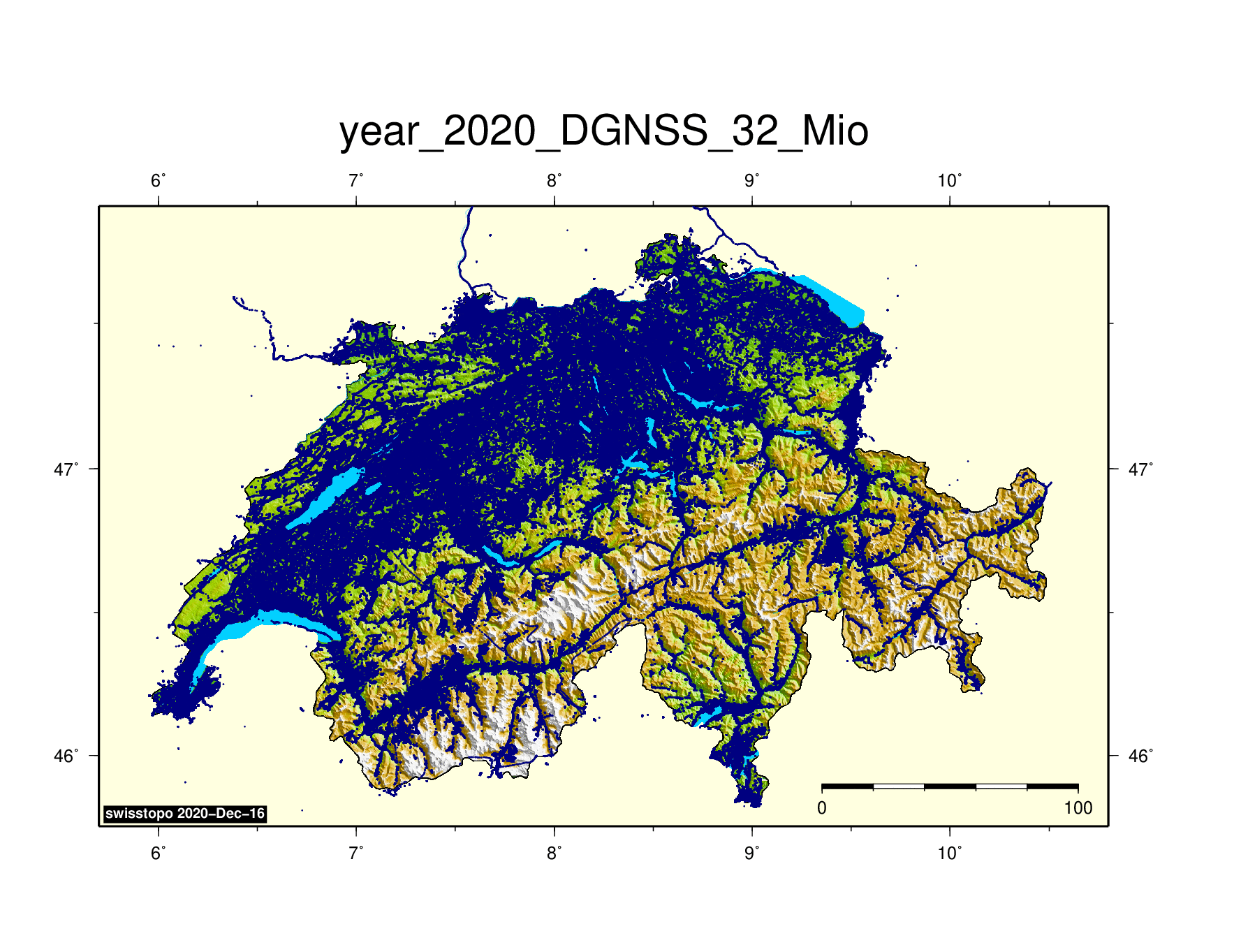

Positions DGNSS (all year)32'000'000 positions DGNSS.
|
|
|
Density of usage (all year)Same information next two plots - simply, two different color schemes and interpolation methods.
|
|
|

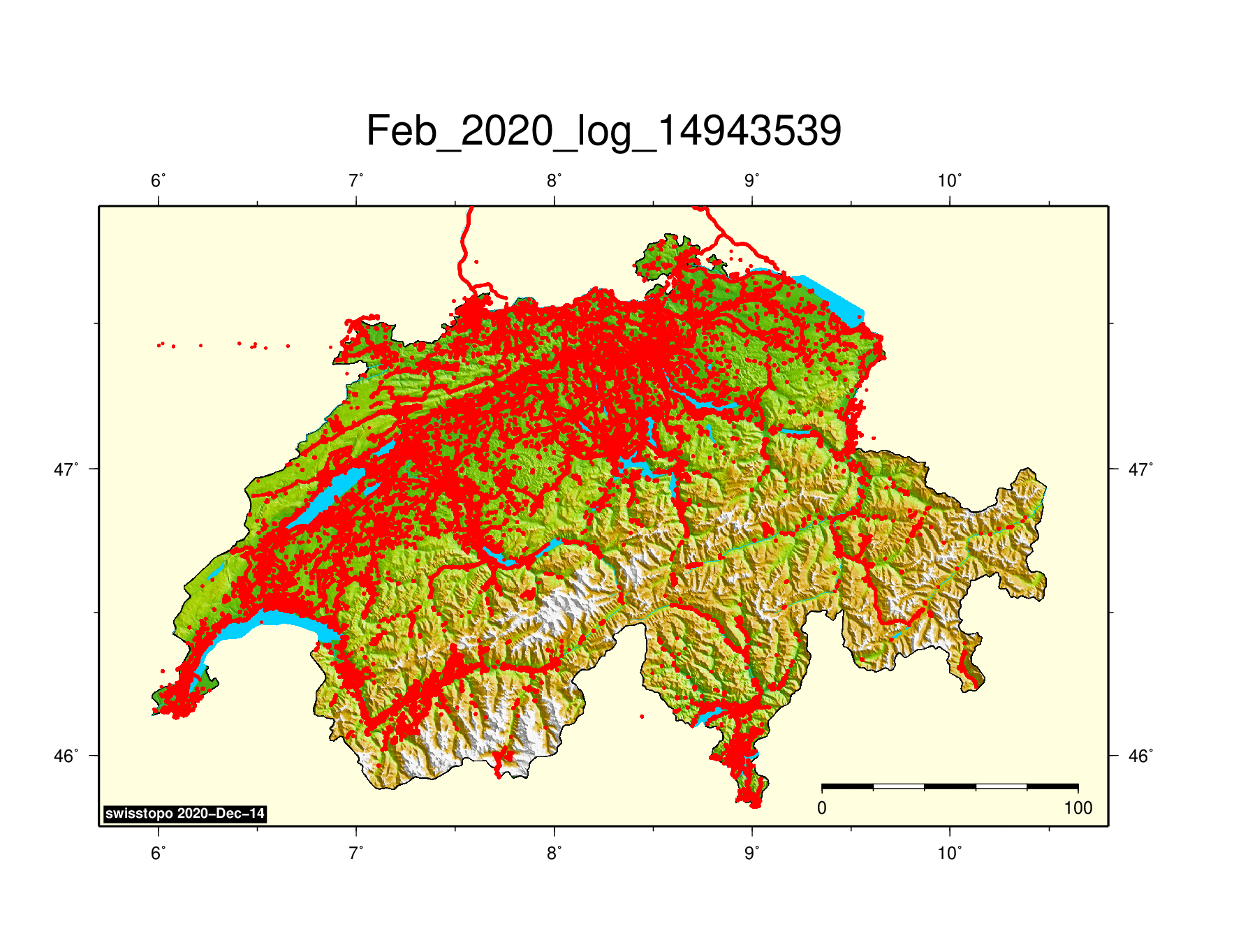

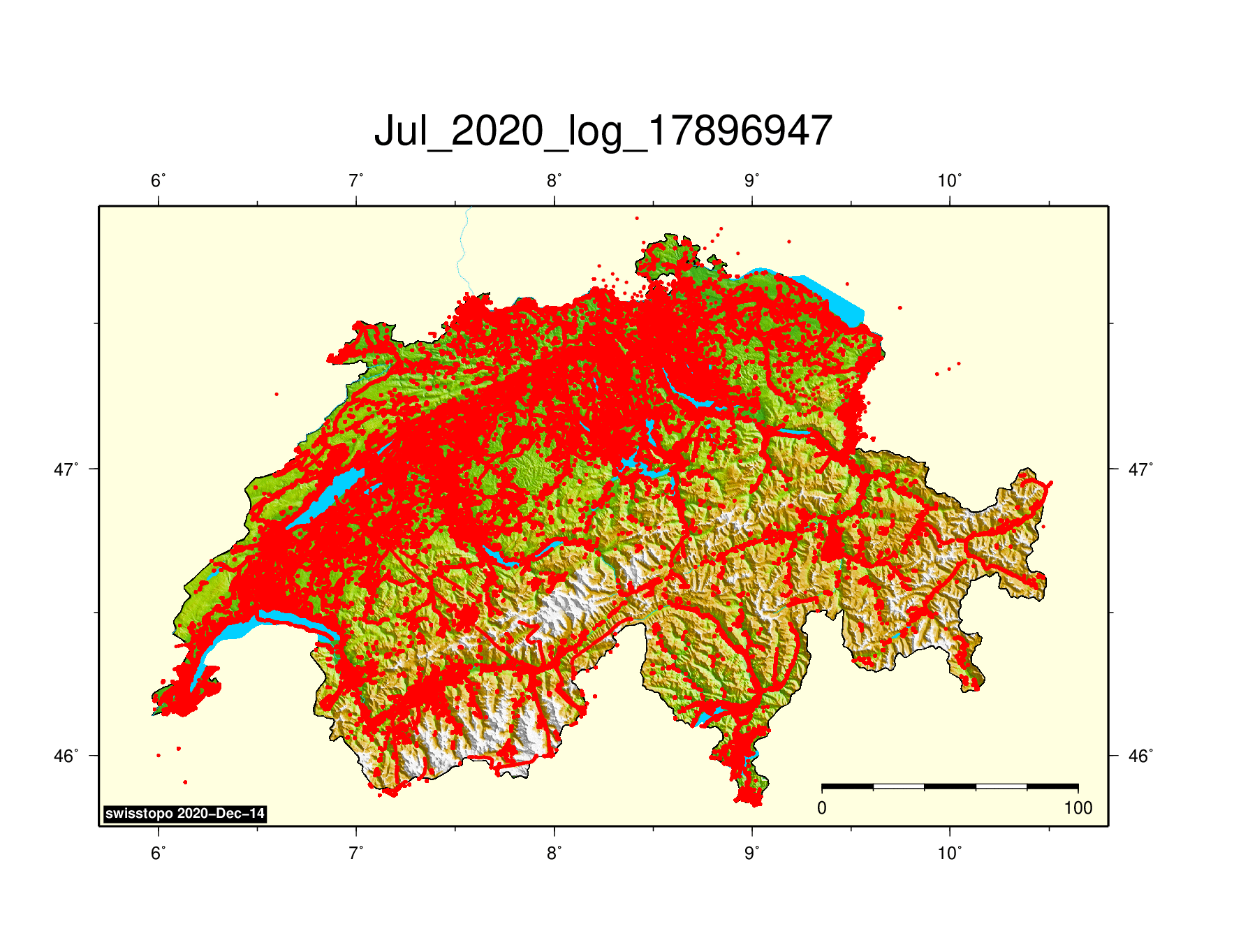

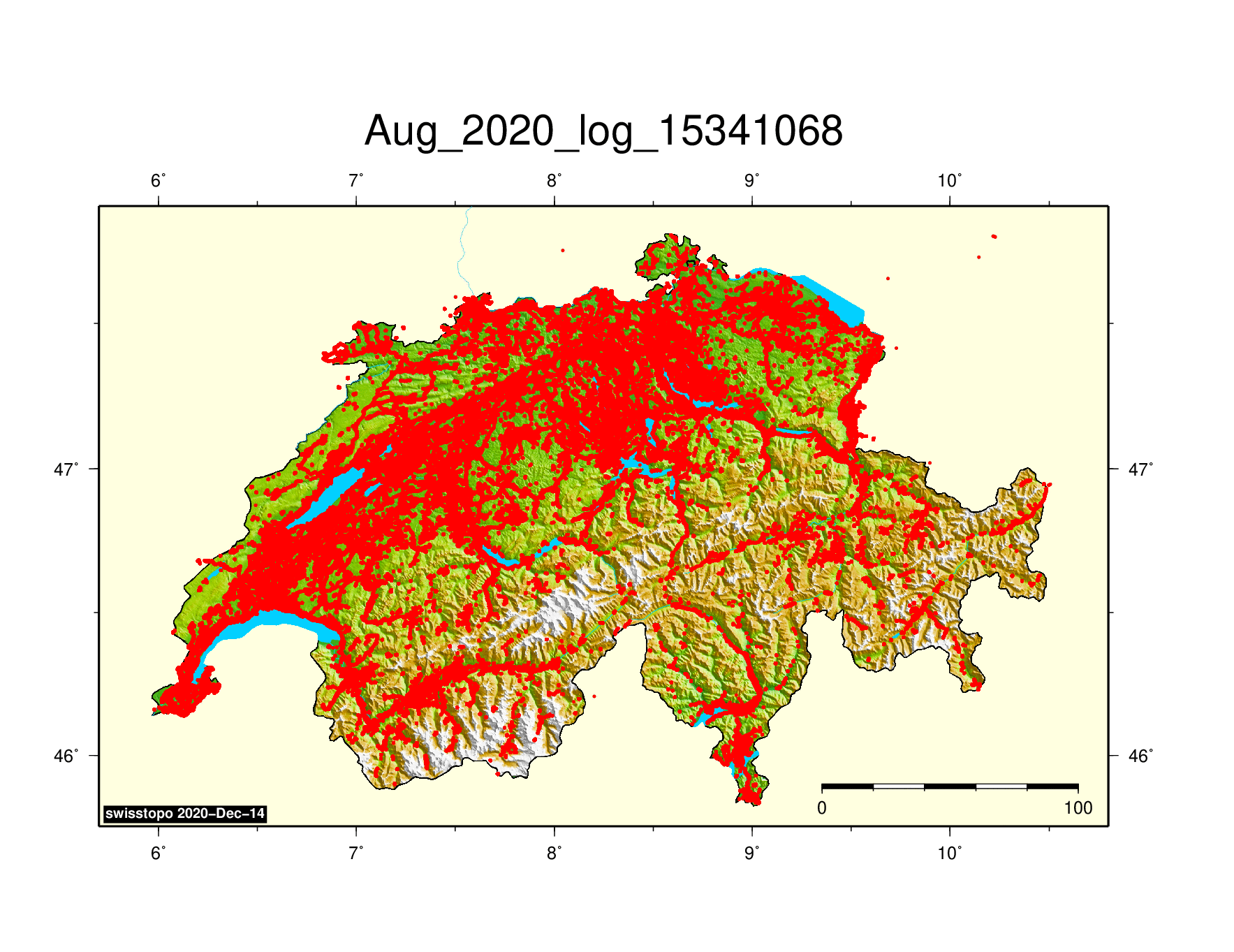

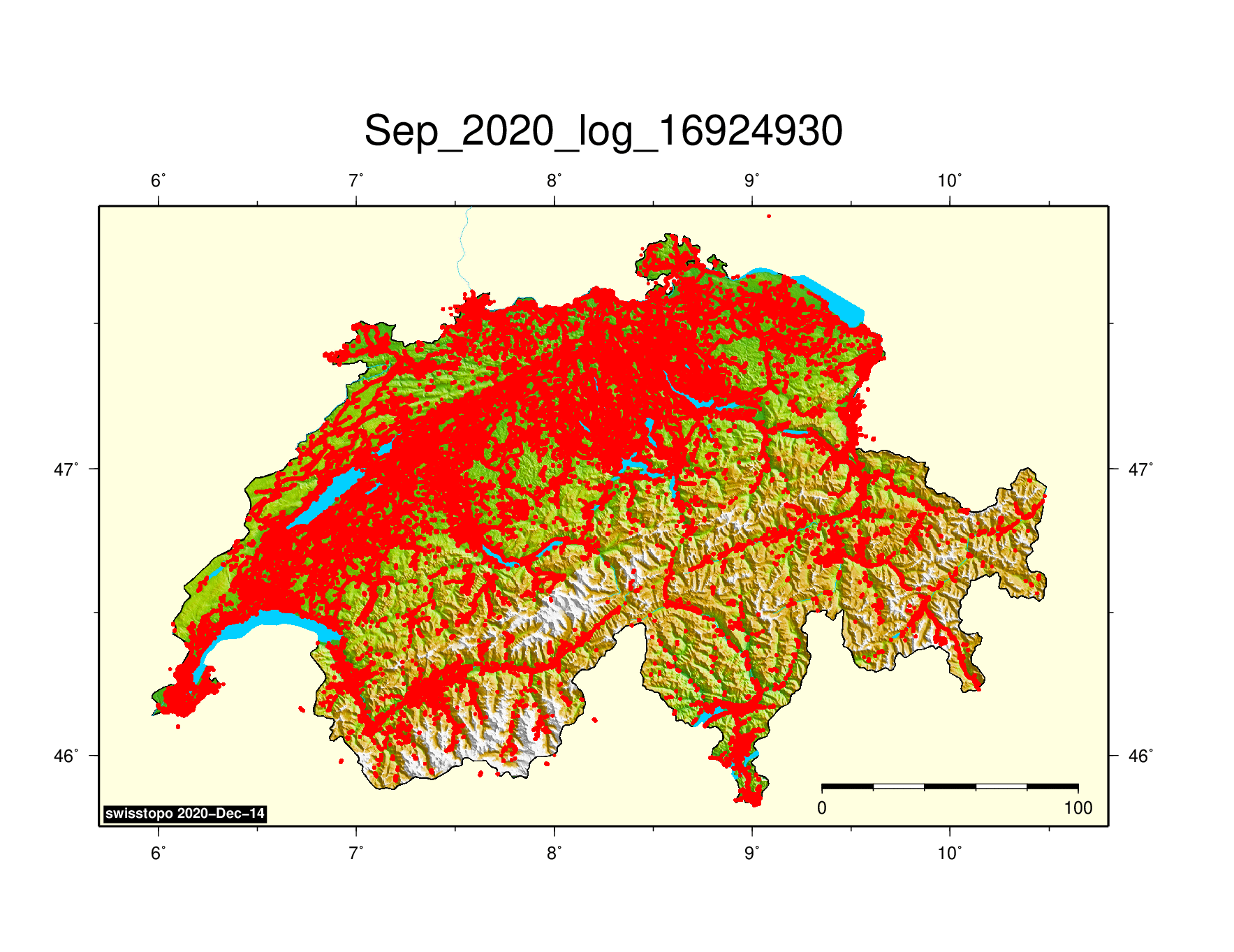

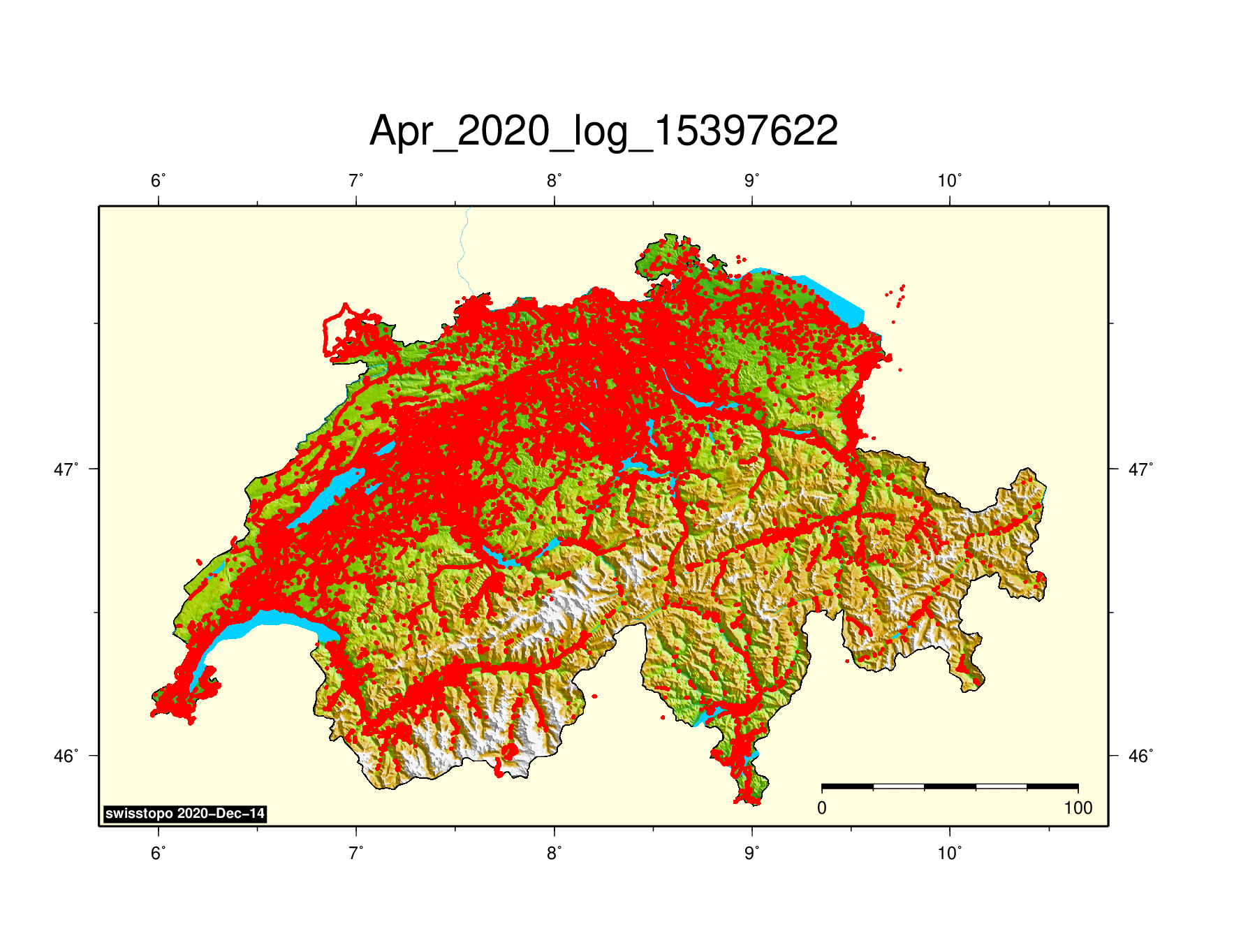

Positions (each month individually)Month and number of positions are shown in the title line.

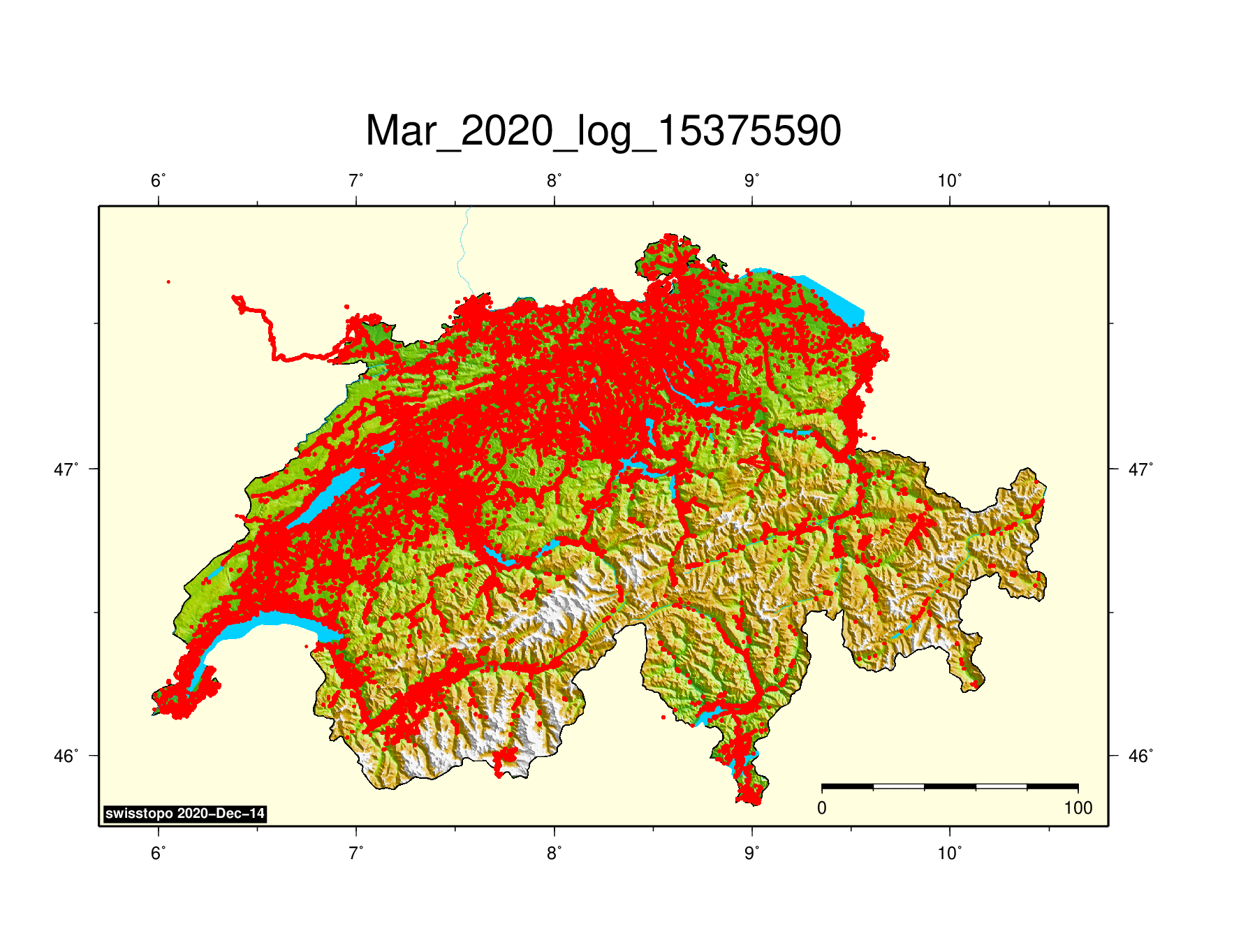

March: Corona lockdown not visible, but more observations in Alpine areas.
December: data only Dec 1 -8,
|
|
|

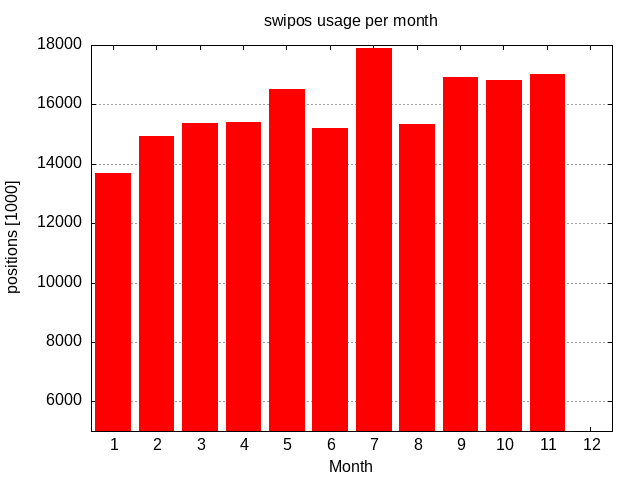

Summary MonthMonth of July with highest number of positions per month (despite vacations).
|
|
|

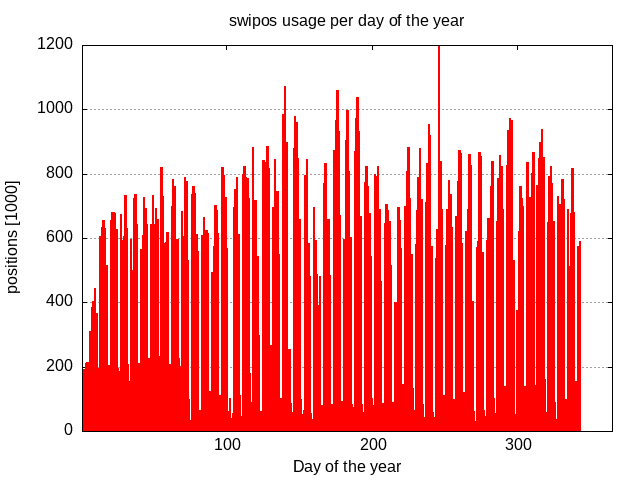

Summary Day of the yearDays with highest number of positions (obviously, Wednesday is most productive day of the week): 02-Sep-2020 Wed. Doy 246 1'571'414 positions 19-May-2020 Tue. Doy 140 1'073'418 positions 24-Jun-2020 Wed. Doy 176 1'061'649 positions 08-Jul-2020 Wed. Doy 190 1'037'789 positions 01-Jul-2020 Wed. Doy 183 996'826 positions
|
|
|

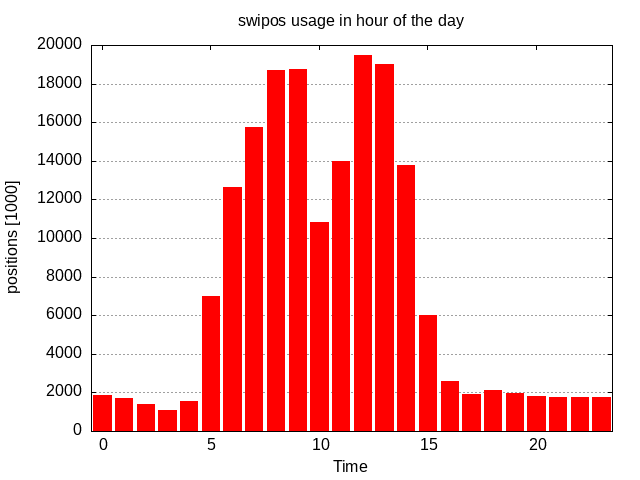

Summary HourMid-day peak with lunch break.
|
|
|

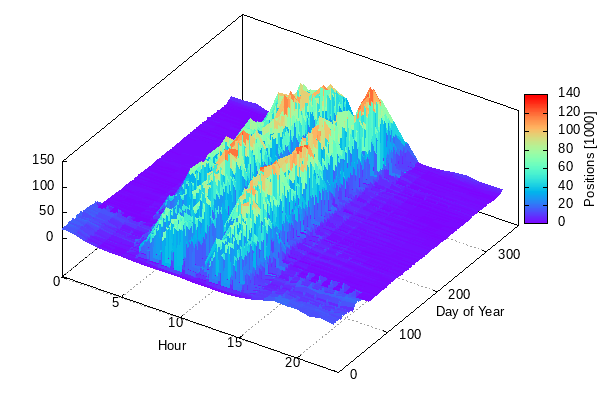

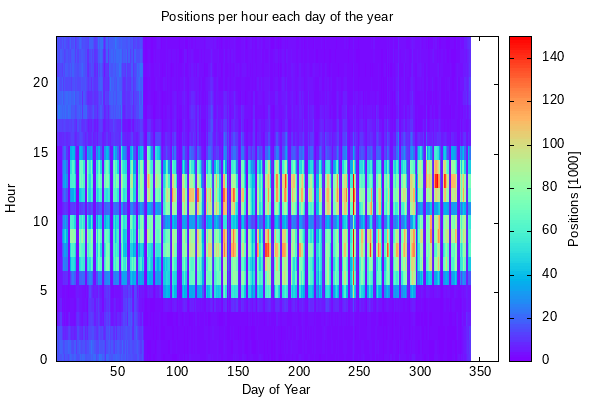

Day time of position for each day of the yearWinter-summer time switches, mid-day peak with lunch break, weekends. Corona lockdown (Doy 076, March 16) and/or finish of ski season shows reducted usage during night and early morning / late evening (no snowcat navigation).
|
|
|

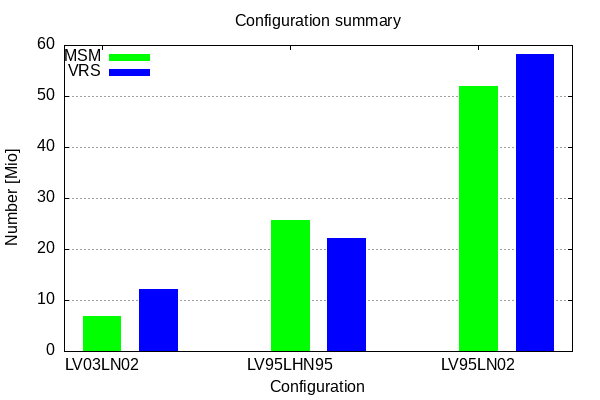

Mountpoints - Summary all year
|
|
|
Mountpoints - Summary MonthIncreasing MSM-LV95LN02 (more GNSS compared to VRS-GPS/GLO starting Mid 2020). Decreasing LV03LN02 - finish end of 2020. (remark December: data only Dec 1 - 8)
|
|
|
Reference Stations (all year)11 sites with a negligible number of connetions (not shown in the plot below) SIGM (D): 6, LECH (AT): 16, ...
|
|
|

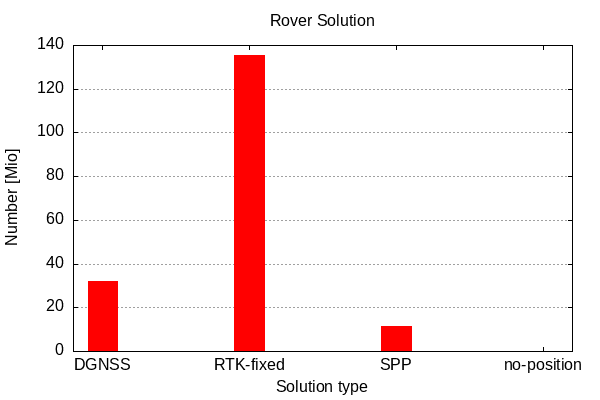

Used Rover Solution Type (all year)
|
|
|
