| AGNES station FHBB | ||||||
|
|
GNSS receiver: | TRIMBLE NETR9 | |||
| GNSS antenna: | TRM59800.00 NONE | |||||
| Antenna height: | 0.000 m | |||||
| Phase center L1: | 0.090 m | |||||
| Phase center L2: | 0.117 m | |||||
| PCV antenna model: | Absolute PCV antenna model (ATX format) | |||||
|
Reference coordinates: |
|
|||||
| CHTRF/ETRF93: | ||||||
| X = 4276062.111 | φ = 47° 32' 1.914150" | |||||
| Y = 573481.106 | λ = 7° 38' 18.973510" | |||||
| Z = 4682319.261 | h = 377.727 | |||||
| LV95 (CH1903+): | ||||||
| E = 2615058.522 | ||||||
| N = 1264811.773 | ||||||
| h = 329.813 (Bessel) |
Receiver+antenna valid since: station inactive since 12.09.2018
Information update: 16.07.2025
|
|||||
|
Sitelog in IGS/EUREF format. |
|
Documentation of changes at the stations. |
|
Compilation of important quality characteristics. |
|

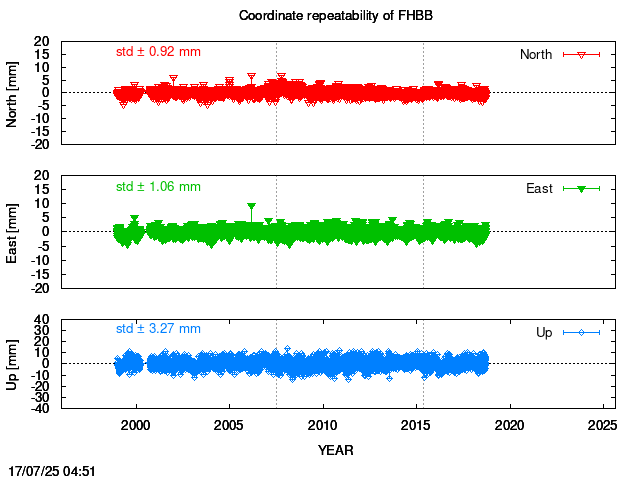

Time series of coordinates (daily solutions). |
|

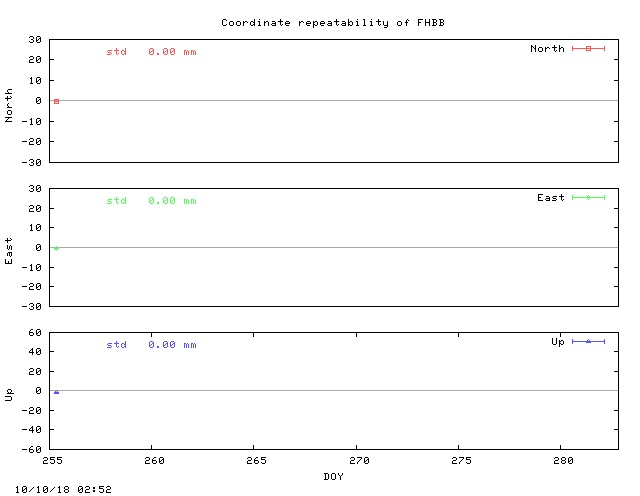

Monitoring of coordinates (last days). |
|

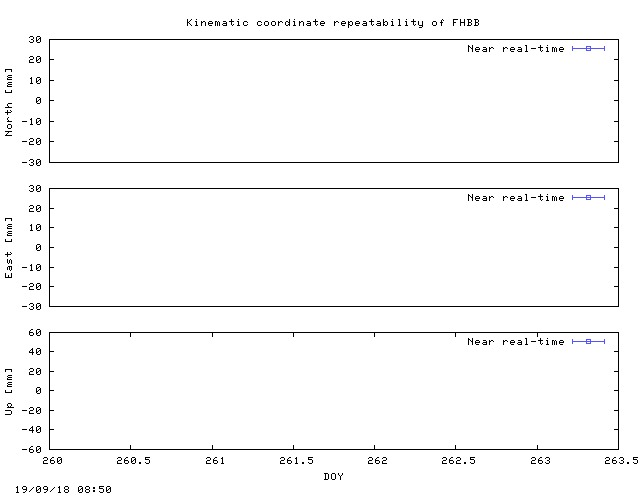

Monitoring of coordinates (last hours) |
|
Monitoring of the troposphere parmeters (last hours). |

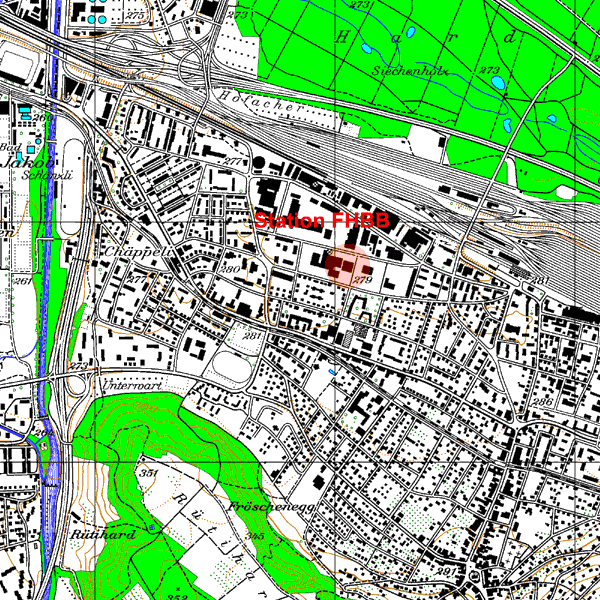

Location of station FHBB:
Map 1:25 000
map.admin.ch: web-zoom , Control Point Viewer
